1936 New Departure Hub Schematics

Hub parts catalog pages for New Departure hubs, circa 1936. These hubs were produced essentially un-changed all the way into the 1950’s.

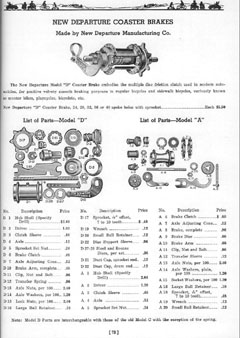

New Departure Model D and Model A rear coaster brake hubs and parts.

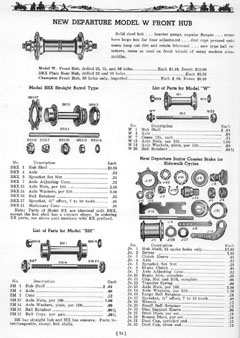

New Departure model W and WD front hubs and parts.
